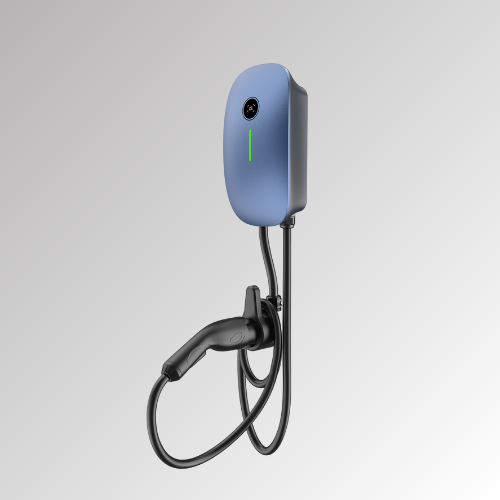

Maxperr Eco 12kW AC EV Charger
$799.00
The Maxperr Eco 12kW is a stylish and user-friendly charging solution with a SAE 1772 (Type 1) connector and smart app integration for easy installation and use. UL-certified, dustproof, and waterproof, ensures the top priority of EV charging safety. In addition, the Maxperr Eco is well-known for its distinctive design, it also offers intelligent load management and seamless PV integration for optimized energy usage.
Intelligent & Efficient
- Smart charging and flexible configuration
- Smart authentication RFID card/App management
- Smart load management
Flexible & Convenient
- LAN, Wi-Fi, 4G, connectivity
- Easy-to-install and commissioning
- Scheduled charging at anytime and anywhere
- Remote diagnosis & OTA
Secure & Reliable
- Type 4X protection
- Residual current protection
- Rich hardware and software protection
- Long life design
- Automotive-grade process and materials
Free shipping!
- Satisfaction Guaranteed
- No Hassle Refunds
- Secure Payments
| Model | ME25-EC-AC-12K | ||
|---|---|---|---|
| Input | |||
| Grid Connection | 2W+PE | ||
| Voltage Range | 240Vac ± 15% | ||
| Maximum Current | 50A | ||
| Rated Frequency | 60Hz | ||
| Output | |||
| Voltage Range | 240Vac ± 15% | ||
| Maximum Current | 50A | ||
| Maximum Power | 12kW | ||
| System | |||
| Charging Connector | SAE J1772 Type 1 Cable, NACS | ||
| Cable Length | 7.5m / 25 ft | ||
| Payment | NFC Card, Apple Pay, Google Pay | ||
| Communication | BLE, Wi-Fi 2.4GHz, 4G, LAN | ||
| Protocol | OCPP 1.6 | ||
| Energy Measurement | Meter (TBD) | ||
| Off-line Charging | Yes (NFC Card) | ||
| Safety | |||
| Ingress Protection Rating | IP 65 / NEMA 4X | ||
| Impact Protection | IK10 | ||
| Protection | Over Current Protection, Residual Current Protection, Ground Protection, Surge Protection, Over/Under Voltage Protection, Over/Under Frequency Protection, Over Temperature Protection, Relay Welding Detection, Scram Protection | ||
| Certification | CSA, FCC, CTEP, ENERGY STAR | ||
| Certification Standard | UL 2594, UL 2231, UL 1998, UL 991; FCC 47 CFR PART 15; California Type Evaluation Program(Optional); ENERGY STAR® Program Requirements for Electric Vehicle Supply Equipment Eligibility Criteria Version 1.2 | ||
| Warranty | 3 years | ||
| Environment | |||

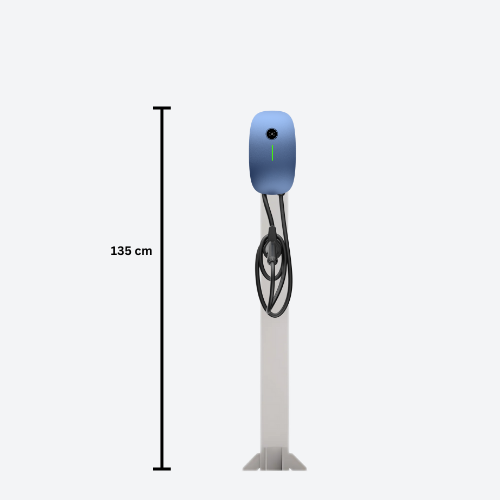

| Installation | Wall-mounted / Pedestal-mounting | ||
| Operating Temperature Range | -35°C – 55°C | ||
| Relative Humidity | 5% – 95% RH | ||
| Cooling | Natural convection | ||
| Operating Altitude | <2000m | ||
| Dimension (W×H×D) | 341×531×112.5mm | ||
| Weight | ≈6.5kg | ||
